Asus Radeon RX 6600 XT GAMING X 8G GDDR6 8 GB AMD Radeon Chipset 128 bit 2601 MHz (Pre Owned)

AMD's Radeon RX 6600 XT card launched in August 2021 and is built on the RDNA 2 architecture—the same Navi 23 chip used in the RX 6600, but fully unlocked with more cores and faster clock speeds. According to tech review sites like NotebookCheck, this card's gaming performance is comparable to NVIDIA's RTX 3060, while power consumption remains roughly the same.

The RX 6600 XT is specifically designed for gamers who want ultra-high framerates at the highest detail settings at 1080p. AMD claimed the card could deliver numbers like 161 FPS in Doom Eternal and up to 543 FPS in Valorant at 1080p max settings.

Performance and Architecture

The RX 6600 XT features 2048 Stream Processors (32 Compute Units), 128 Texture Units, 64 ROPs, and 32 Ray Accelerators. The base clock is around 1968 MHz, the game clock ranges from 2359-2428 MHz, and the boost clock ranges from 2589-2607 MHz (varies depending on the model). This card is built on a 7nm process and features approximately 11.1 billion transistors.

Support for DirectX 12 Ultimate, OpenGL 4.6, and Vulkan makes this card well-compatible with modern gaming technology. Features like DirectX Raytracing (DXR), Variable Rate Shading (VRS), AMD FidelityFX Super Resolution (FSR), Radeon Image Sharpener (RIS), and Smart Access Memory (SAM, with compatible Ryzen CPUs) are also included.

Memory and memory bandwidth

The card features 8GB of GDDR6 video memory, running at 16 Gbps over a 128-bit memory interface. This provides raw memory bandwidth of approximately 256 GB/s, which is better than the RX 6600 (224 GB/s). The 32MB Infinity Cache technology also significantly increases effective bandwidth, allowing the card to deliver smooth performance in high-resolution gaming despite its limited 128-bit bus.

Display Output and Connectivity

The RX 6600 XT features three DisplayPort 1.4a and one HDMI 2.1 output, supporting resolutions up to 4K@120Hz and 8K@60Hz, and VRR (Variable Refresh Rate) support. The card can connect up to four displays simultaneously. The PCI Express 4.0 x8 interface makes it compatible with modern motherboards.

Cooling and Build

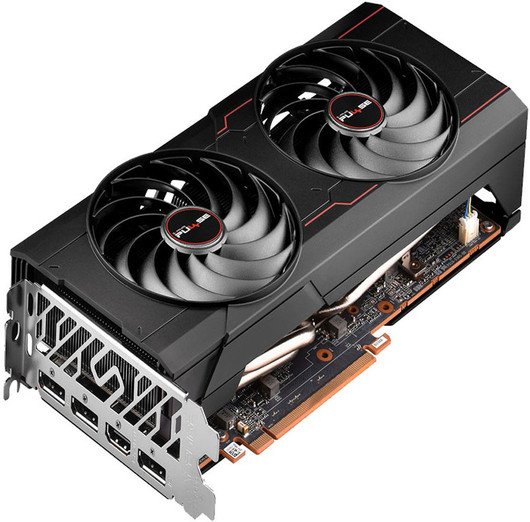

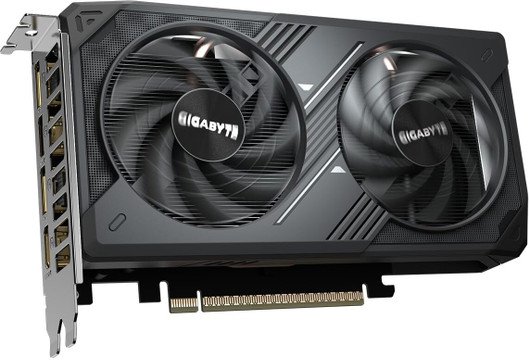

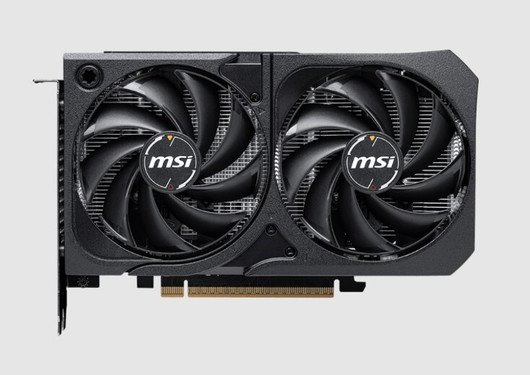

The card comes in a dual-slot design and measures between 220mm and 282mm in length, depending on the model. Most variants feature dual-fan (e.g., Sapphire PULSE, XFX Speedster, MSI Gaming X) or triple-fan (e.g., Gigabyte GAMING OC) cooling designs. Designs like Gigabyte's WINDFORCE 3X also feature alternate-spinning fans and a metal backplate, ensuring both improved cooling and build quality.

Things to keep in mind during installation

Ensure the card is seated correctly in the PCIe slot and the 8-pin power connector is connected. The recommended PSU is 500W, while the actual TGP (Total Graphics Power) is around 160W. Download the Adrenalin driver from AMD's official website to take advantage of game-specific optimizations and the latest features.

Who is this graphics card for?

The RX 6600 XT is an excellent choice for users who want ultra-high framerates at 1080p at the highest detail settings. This card handles everything from esports titles to heavy AAA games with ease, and can also provide a basic ray-tracing experience. For those confused between the RX 6600 and the NVIDIA RTX 3060, this card is a strong AMD-side alternative.

RX 6600 XT Specifications Table

RX 6600 XT Price (New vs Second-Hand)

Note: This card was also launched during the crypto mining boom (2021-22), so be sure to verify the card's history, fan bearings, and warranty status when purchasing second-hand. Also, be sure to check the current price on local markets/online platforms, as this is still an active card market.
