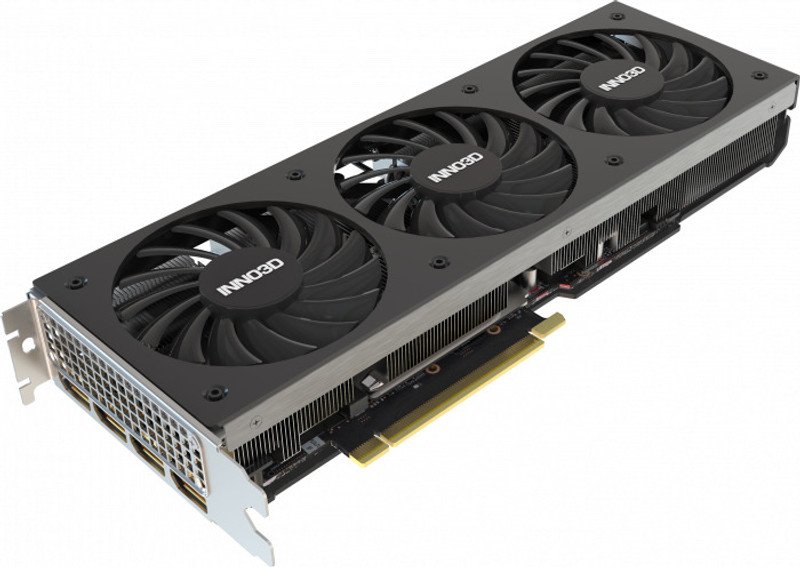

NVIDIA GeForce RTX 3070 Ti 8GB Graphics Card (Pre Owned)

NVIDIA's RTX 3070 Ti card launched in May 2021 and is positioned directly between the RTX 3070 and RTX 3080. It's built on the same GA104 chip, but uses the GA104-400-A1 variant, the most fully-featured version of the GA104. This increases the CUDA cores from the RTX 3070's 5888 to 6144.

But this card's biggest highlight is its memory technology—the RTX 3070 Ti marks the first time NVIDIA has introduced GDDR6X memory (previously only used in high-end cards like the RTX 3080/3090) to the mid-range segment. This memory runs at speeds up to 19 Gbps, significantly faster than regular GDDR6 (14 Gbps), providing a big performance boost in memory-heavy games and tasks.

Performance and Architecture

The RTX 3070 Ti features 6144 CUDA Cores, 192 Tensor Cores, 48 ​​RT Cores, and 96 ROPs. Boost clocks range from 1770 MHz to 1800 MHz depending on the model, with factory-overclocked variants (like the ASUS TUF Gaming OC) reaching as high as 1815 MHz. This card is also built on an 8nm process (Samsung), boasting approximately 17.4 billion transistors.

DirectX 12 Ultimate, OpenGL 4.6, and Vulkan support make this card well-compatible with modern gaming technologies. NVIDIA DLSS, ray-tracing, NVIDIA Reflex, G-Sync, and NVIDIA Studio driver support (for content creators) are also included. This card also works well with collaborative 3D workflows like NVIDIA Omniverse.

Memory and memory bandwidth

This card features 8GB of GDDR6X video memory, running at speeds of up to 19 Gbps over a 256-bit memory interface. This provides memory bandwidth of up to 608 GB/s, significantly higher than the RTX 3070 (448 GB/s). This high-bandwidth GDDR6X memory gives this card a significant advantage, especially in high-resolution textures and data-heavy workloads, although the 8GB VRAM capacity is the same as the RTX 3070.

Display Output and Connectivity

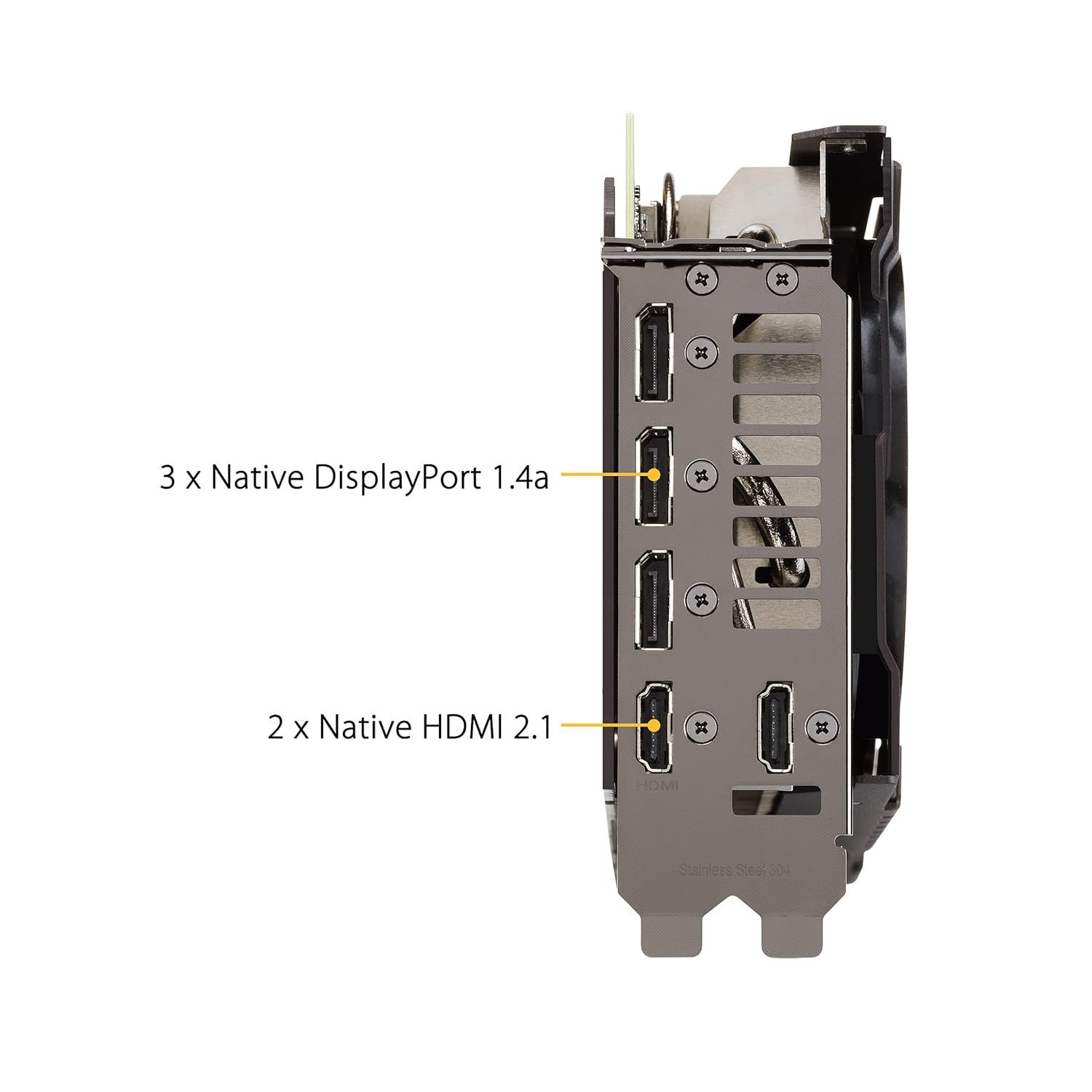

The RTX 3070 Ti features 3x DisplayPort 1.4a and 1-2x HDMI 2.1 (depending on model) outputs, supporting resolutions up to 4K@120Hz and 8K@60Hz. The card can connect up to 4 displays simultaneously. The PCI Express 4.0 x16 interface allows for full bandwidth utilization with the latest motherboards. SLI/NVLink support is not available.

Cooling and Build

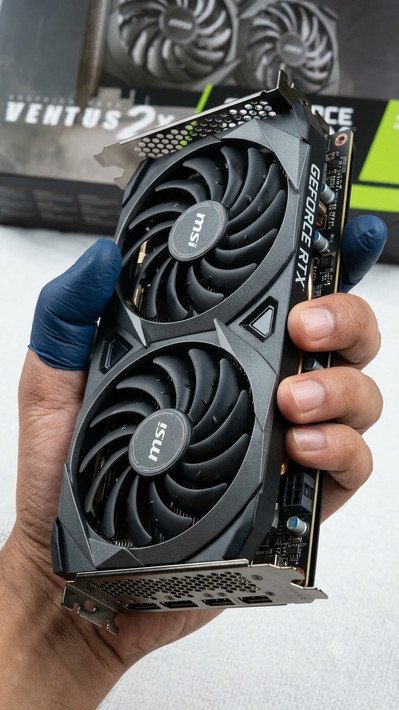

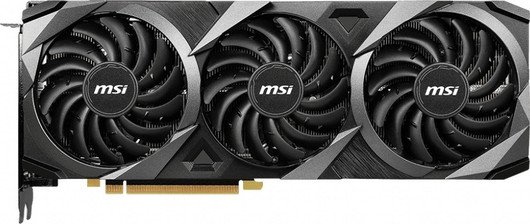

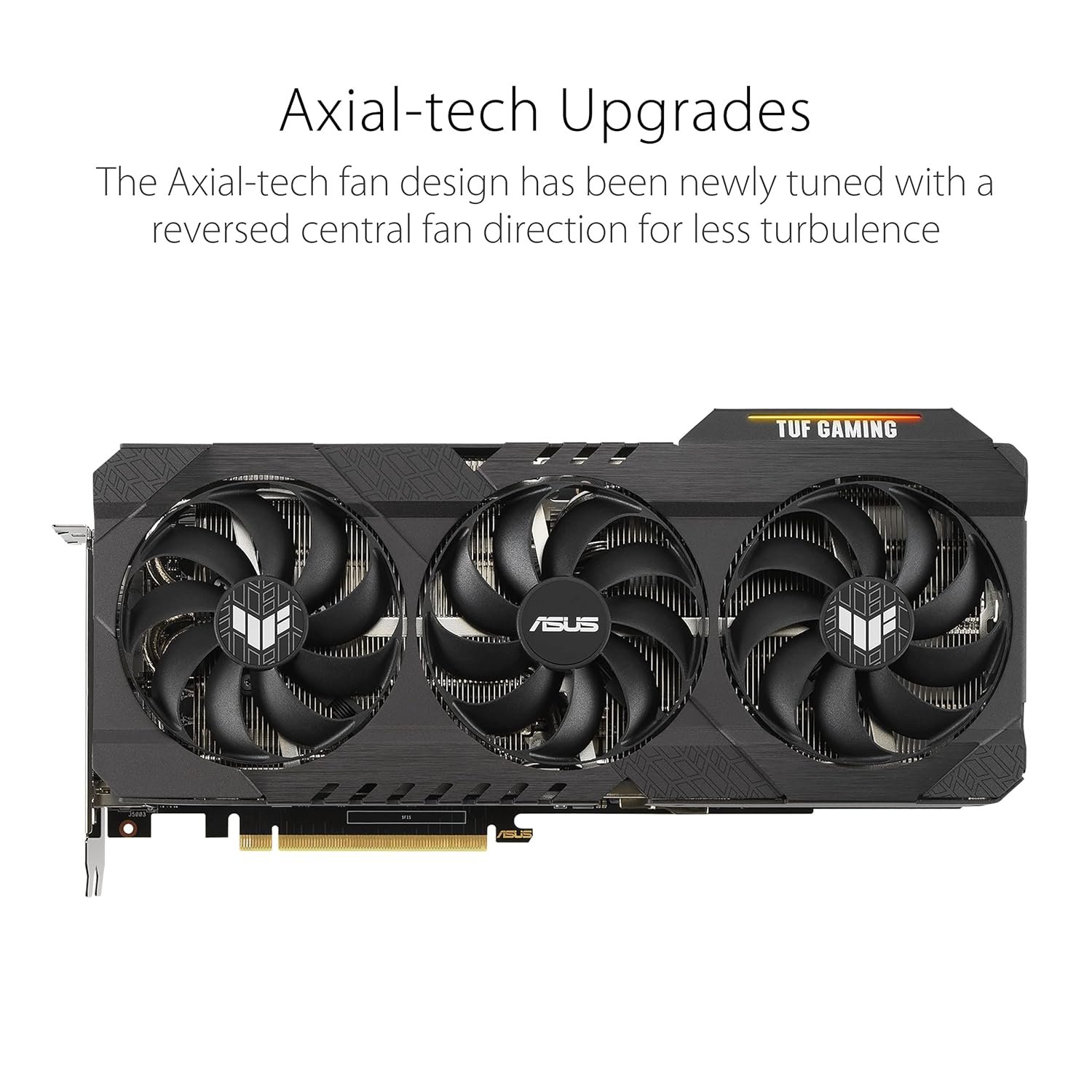

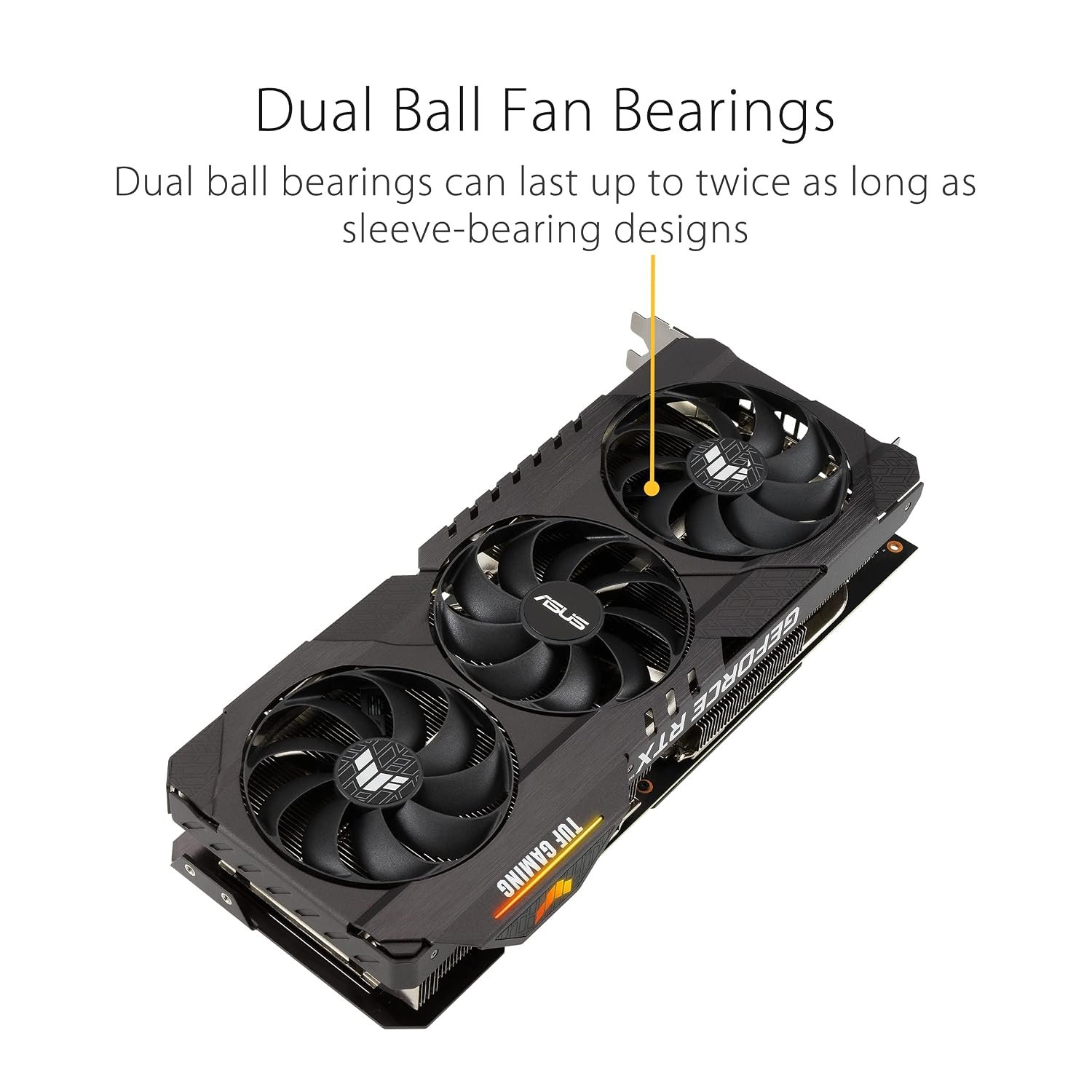

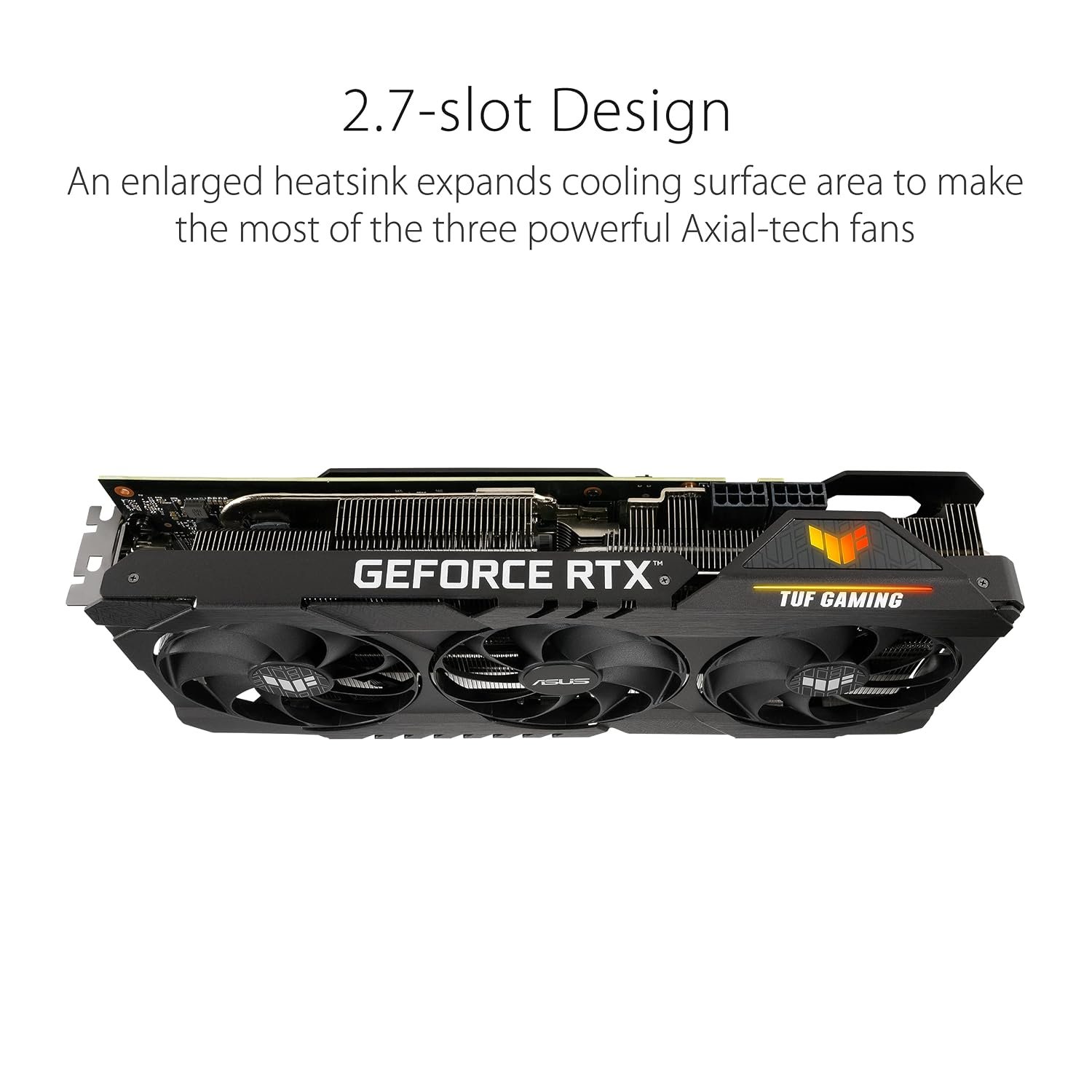

The card comes in a dual- or triple-slot design, and its length varies depending on the model (some triple-fan variants even reach 300mm+). With a TDP of 290W, most variants feature a triple-fan cooling design (e.g., MSI Ventus 3X, MSI Gaming X Trio), which should keep the card at a stable temperature even under heavy gaming loads.

Things to keep in mind during installation

Ensure the card is seated correctly in a PCIe x16 slot and connect the two 8-pin power connectors. The recommended PSU is 750W, which is slightly higher than the RTX 3070 due to the increased power draw due to the GDDR6X memory and higher cores. Download the GeForce Game Ready or Studio drivers from NVIDIA's official website.

Who is this graphics card for?

The RTX 3070 Ti is an excellent option for users who want a little more performance than the RTX 3070, especially those who want to take advantage of high-bandwidth memory. This card is a strong performer for 1440p highest-settings gaming and entry-level 4K. This card is also suitable for AI/ML developers for learning, prototyping, and inference tasks, although the 8GB of VRAM may be a limitation when training large models.

RTX 3070 Ti Specifications Table

conclusion

Overall, the NVIDIA RTX 3070 Ti is a card that fills a sweet spot between the RTX 3070 and RTX 3080. The biggest highlight is its ultra-fast GDDR6X memory, which was introduced to the mid-range segment for the first time at the time. This combination of more CUDA cores and high-bandwidth memory makes it an excellent choice for 1440p highest-settings gaming. If you want a little more headroom than the RTX 3070 and have a more flexible budget, this card is definitely worth considering.

RTX 3070 Ti Price (New vs Second-Hand)

Note: This card was also launched during the crypto mining boom (2021), so be sure to verify the card's history, fan bearings, and warranty status when purchasing it second-hand. Cards with GDDR6X memory typically run a bit hot, so be sure to have the thermal performance tested. Be sure to check the current price on local markets/online platforms, as this is still an active card market.
