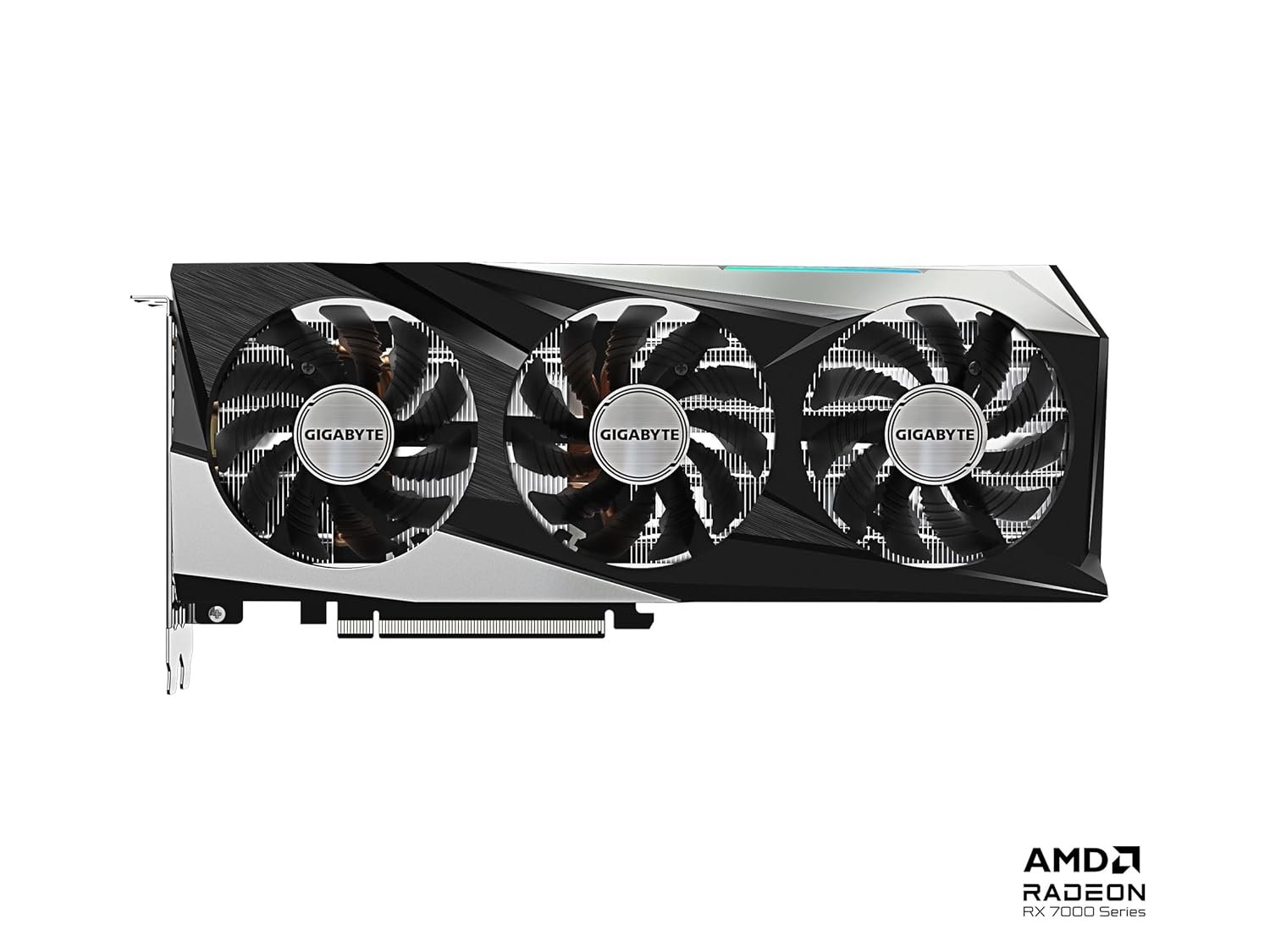

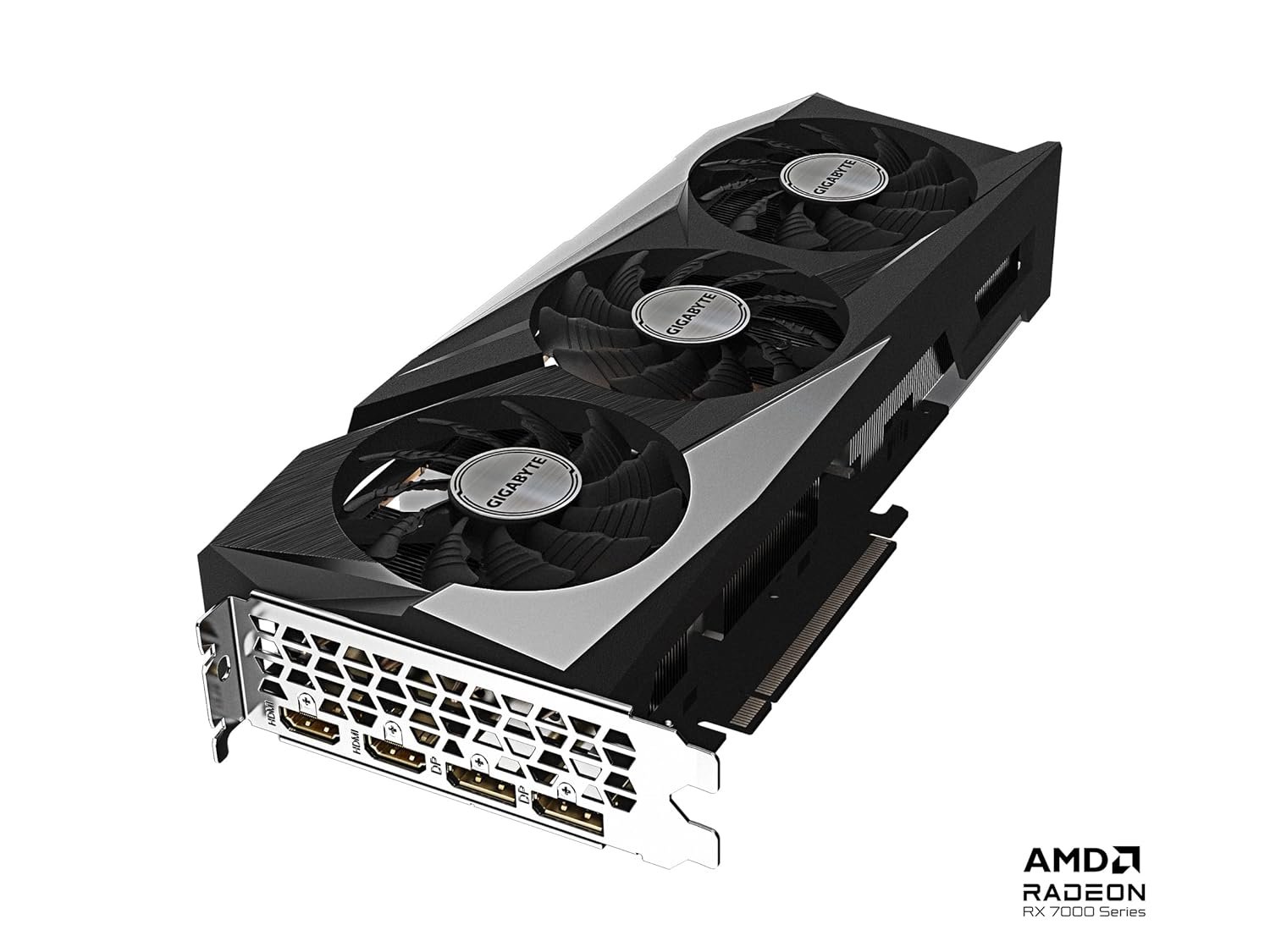

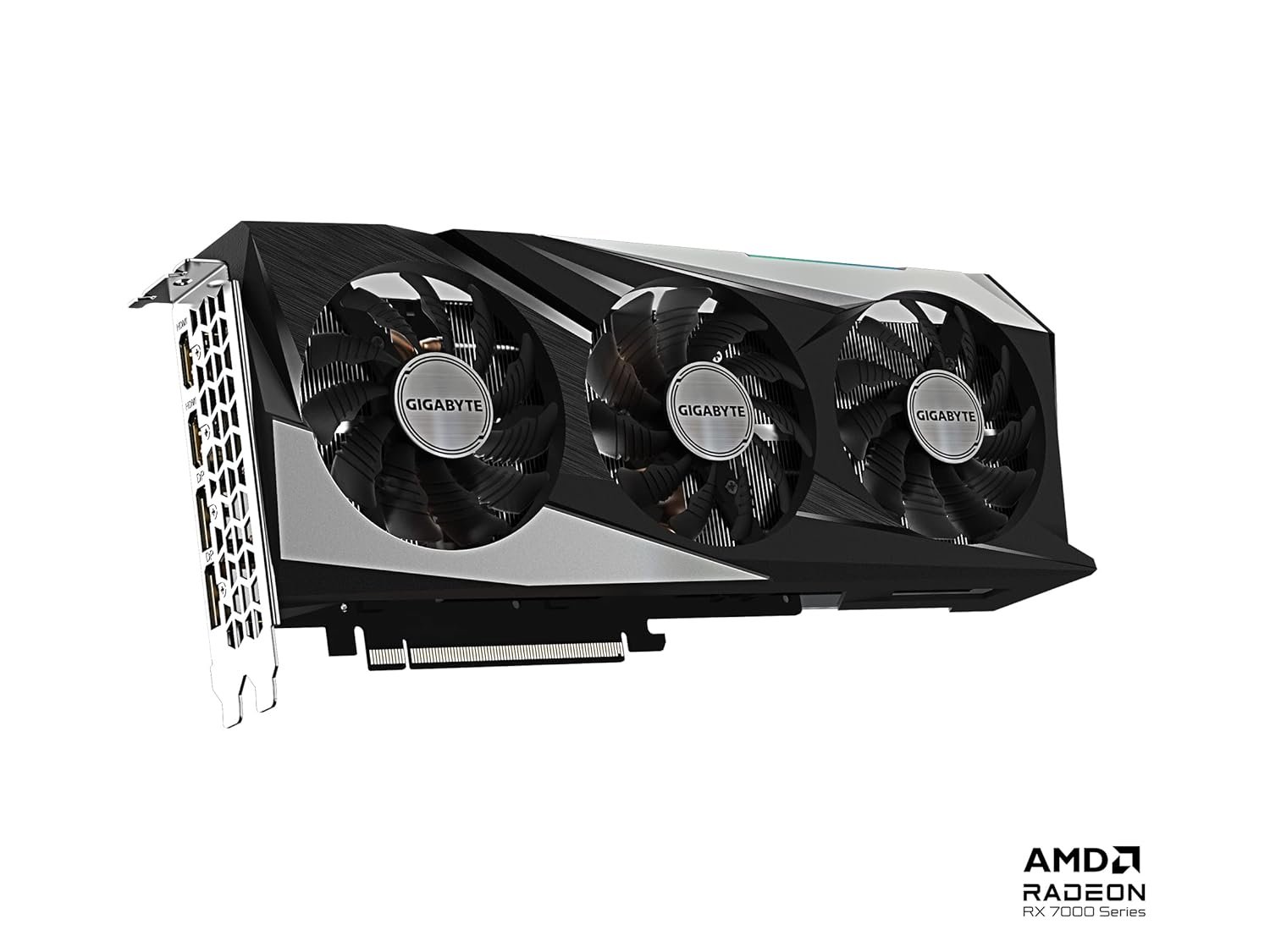

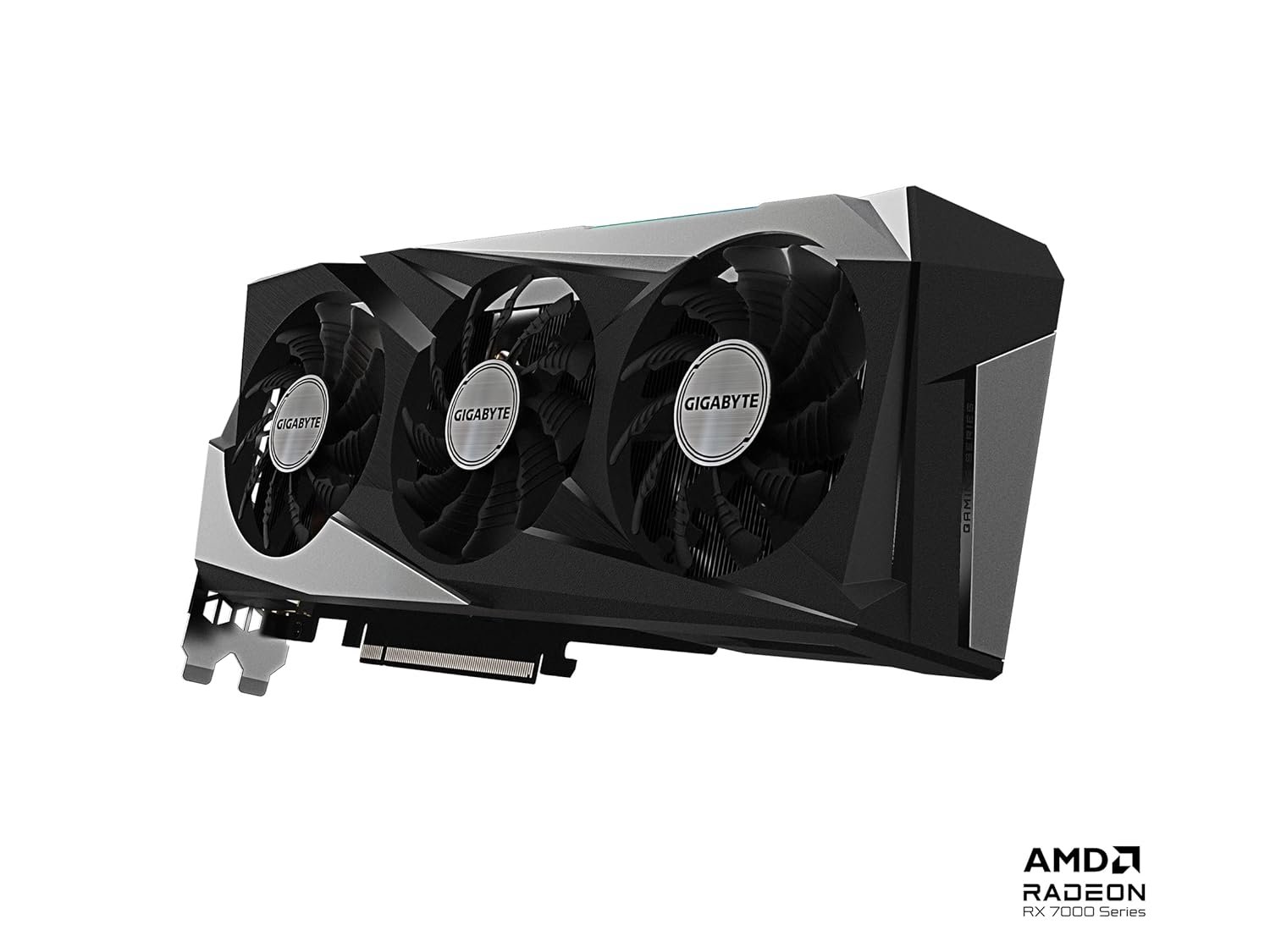

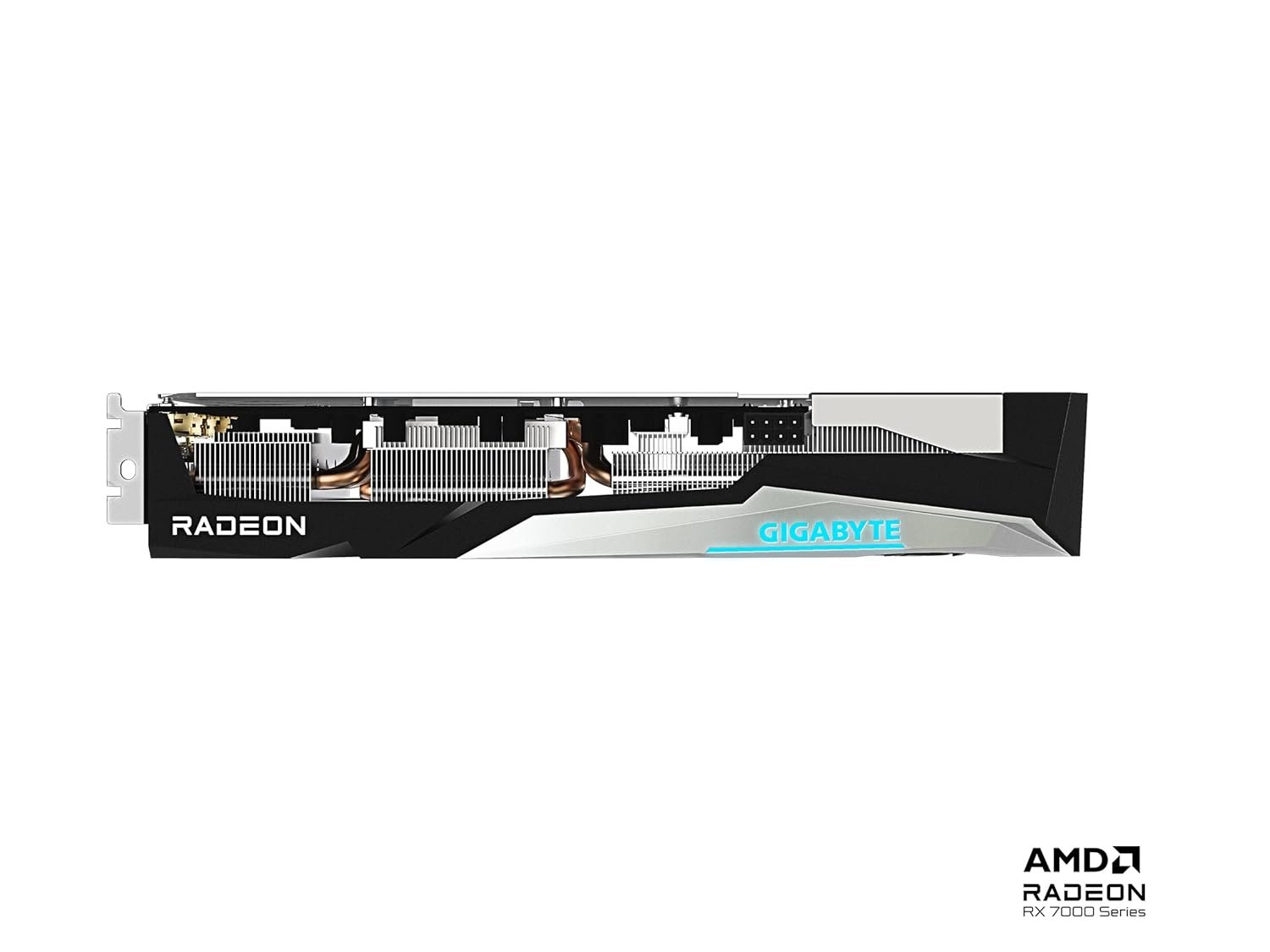

AMD Radeon Rx 7600 8GB Graphics Card (Pre Owned)

AMD's Radeon Rx 7600 card launched in October 2021 and is built on the RDNA 2 architecture—the same architecture used in AMD's console-grade technology (PS5, Xbox Series X). This card is specifically designed for "serious 1080p gaming" and focuses on delivering ultra-high framerates.

The card's biggest highlight is AMD's Infinity Cache technology—this 32MB on-chip cache effectively allows the card to perform as if it had a larger bus width, despite only having a 128-bit memory bus. This is why, despite the limited memory bus, the card delivers smooth and stable framerates in 1080p gaming. The card also features AMD's first-generation hardware ray-tracing support, a major feature in the budget segment.

Performance and Architecture

The Rx 7600 features 1792 Stream Processors (28 Compute Units), 112 Texture Units, 64 ROPs, and 28 Ray Accelerators (for hardware ray-tracing). The base clock is around 1626 MHz, the game clock goes up to 2044 MHz, and the boost clock goes up to 2491 MHz (varies depending on the model). This card is built on TSMC's 7nm process, making it extremely power-efficient.

Support for DirectX 12 Ultimate, OpenGL 4.6, and Vulkan makes this card well-compatible with modern gaming technology. Features like AMD FidelityFX Super Resolution (FSR), Radeon Anti-Lag, Radeon Boost, and Smart Access Memory (SAM, with compatible Ryzen CPUs) are also included in this card, further improving gaming performance and responsiveness.

Memory and memory bandwidth

This card features 8GB of GDDR6 video memory, running at 14 Gbps over a 128-bit memory interface. This provides raw memory bandwidth of approximately 224 GB/s, but the effective bandwidth feels much higher due to the 32MB Infinity Cache. 8GB of VRAM is more than sufficient for most modern 1080p games and provides a good amount of headroom for the future.

Display Output and Connectivity

The Rx 7600 features 3x DisplayPort 1.4 and 1x HDMI 2.1 outputs, supporting resolutions up to 4K@120Hz and 8K@60Hz, and VRR (Variable Refresh Rate) support. The card can connect up to 4 displays simultaneously. The PCI Express 4.0 x8 interface allows the card to operate at full speed on modern motherboards, although some performance limitations may be observed on PCIe 3.0 motherboards due to the x8 lanes it uses.

Cooling and Build

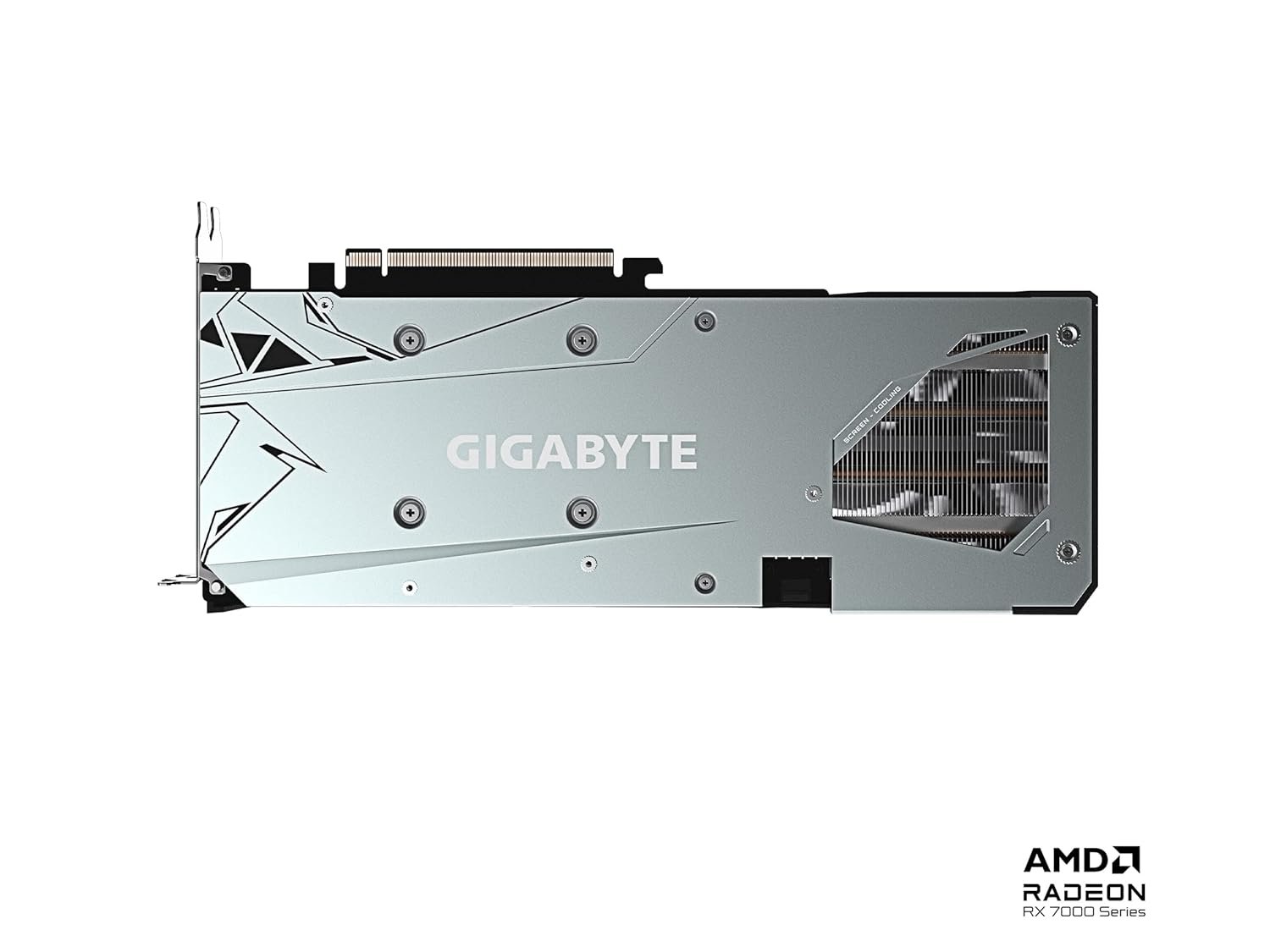

The card comes in a dual-slot design and measures between 190mm and 282mm in length, depending on the model. Most variants feature dual-fan cooling designs (e.g., ASRock Challenger D, Gigabyte EAGLE, MSI MECH 2X), often featuring 0dB silent cooling technology, which completely shuts off the fans under low load. Some ITX variants are also available, suitable for compact builds.

Things to keep in mind during installation

Ensure the card is seated correctly in its PCIe slot and the 8-pin power connector is connected. The recommended PSU is 500W, although the actual power draw is only around 132W. Download the Adrenalin drivers from AMD's official website, which are regularly updated with game-specific optimizations.

Who is this graphics card for?

The Rx 7600 is an excellent option for users seeking a 1080p high-framerate gaming experience on a budget. This card is a strong performer for esports titles, AAA games, and even basic ray-tracing experiences. Its extremely low power consumption also makes it an excellent upgrade choice for systems with older or low-wattage PSUs.

Rx 7600 Specifications Table

Rx 7600 Price (New vs Second-Hand)

Note: This card was launched during the crypto mining boom (2021-22) and saw some use in mining due to its good hashrate-to-power efficiency. Therefore, when purchasing second-hand, be sure to verify the card's history and warranty status. Also, be sure to check the current price on local markets/online platforms, as this is still an active market card.
