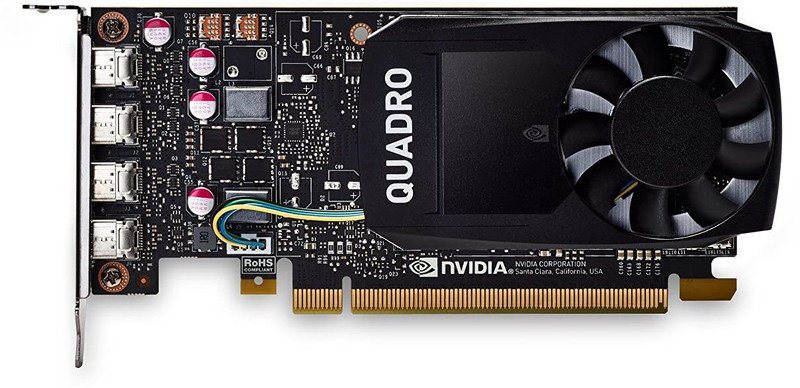

NVIDIA Quadro P1000 4GB Professional Graphics Card (Pre Owned)

NVIDIA's Quadro P1000 launched in February 2017 and is a major step-up from the Quadro P400 and P600. It's also built on the Pascal architecture, but its biggest highlight is that it's the most powerful professional graphics solution available in a low-profile, single-slot form factor. Compared to the previous generation, this card delivers approximately 60% better performance without compromising on size.

This card is specifically designed for professionals who want to minimize their workstation's desktop footprint without sacrificing performance. For designers, engineers, editors, and architects, this is a compact workstation solution that easily handles tasks like real-time work with HDR content, detailed model creation, and complex manufacturing assembly.

Performance and Architecture

The Quadro P1000 features 640 CUDA cores, significantly more than the Quadro P600 (384 cores). The base clock is around 1266 MHz, and the boost clock goes up to 1480 MHz. Pascal Dynamic Load Balancing technology allows the GPU to be used efficiently between different workloads, resulting in faster response times.

Shader Model 5.1, OpenGL 4.5, DirectX 12.0, and Vulkan 1.0 support make this card well-compatible with modern professional applications. Compute API support for CUDA, DirectCompute, and OpenCL is also included, making it useful for CAE simulations and hardware-accelerated rendering. Furthermore, this card comes with advanced ISV (Independent Software Vendor) certification, ensuring stability with professional software.

Memory and memory bandwidth

This card features 4GB of GDDR5 video memory, running at 1253 MHz over a 128-bit memory interface. This provides memory bandwidth of approximately 80-82 GB/s, which is even better than the Quadro P600 (64 GB/s). The high memory capacity and bandwidth allow this card to easily handle large and complex datasets, heavy 3D models, and multi-layer design files.

Display Output and Connectivity

The Quadro P1000 features 4x Mini DisplayPort 1.4 outputs, allowing it to directly connect up to 4 displays simultaneously, each supporting up to 4096x2160 (4K) resolution @ 60Hz. It can also output up to 4x 5120x2880 (5K) resolution via DisplayPort Multi-Stream technology. Adapters/connectors can be used for VGA, DVI, or HDMI devices if required.

The PCI Express 3.0 x16 interface makes this card easily integrated into any modern workstation motherboard. The nView desktop management software also makes it easy to customize and manage multi-display setups.

Cooling and Build

This card features the same single-slot, low-profile design (approximately 145mm in length) as the P400 and P600, featuring an active cooling solution. Despite its compact size, the card can handle up to 47W of power, making it the most power-dense low-profile card in its series. It can also fit easily into SFF (Small Form Factor) workstation chassis.

Things to keep in mind during installation

Seat the card correctly in its PCIe x16 slot. Being a single-slot card, it doesn't require an additional power connector. Download the Quadro/RTX Professional driver from NVIDIA's official website, as it offers better stability with professional applications and ISV certification (Windows 7, 8, 8.1, and Linux supported).

Who is this graphics card for?

The Quadro P1000 is an excellent choice for professionals who need more memory, more compute power, and improved bandwidth than the Quadro P400/P600, while maintaining a compact form factor. This card is a reliable and power-efficient choice for demanding workloads like CAD, DCC (Digital Content Creation), 3D modeling, architectural design, and video editing.

Quadro P1000 Specifications Table

conclusion

Overall, the NVIDIA Quadro P1000 is the most powerful option in its low-profile Quadro series, delivering strong performance in a compact form factor with more CUDA cores, 4GB of memory, and improved bandwidth. If your needs exceed those of the Quadro P400/P600, but you still want a single-slot, low-power workstation card, this card is definitely worth considering.

Quadro P1000 Price (New vs Second-Hand)

Note: This card is also mostly available in the second-hand market as a refurbished/pulled unit from OEM workstations (Dell, HP, Lenovo), so please verify the bracket type (low-profile or high-profile), availability of mini-DisplayPort adapters, and genuineness of the card before purchasing.
