AMD Radeon RX 560 4GB Graphics Card (Pre Owned)

AMD's Radeon RX 560 card is part of the RX 500 series and is also built on the 4th Generation GCN (Polaris) architecture. This card comes with more Stream Processors and improved memory bandwidth than the RX 550, which allows it to deliver significantly better performance in 1080p gaming. Especially in esports titles like CS:GO, Dota 2, Valorant, and League of Legends, this card delivers smooth gameplay at high frame rates.

This card is available in two core variants—14 CU (896 Stream Processors) and 16 CU (1024 Stream Processors). The 16 CU variant is more powerful and is used in most gaming-focused models, so be sure to check the CU count on the box when purchasing.

Performance and Architecture

The full-spec (16 CU) RX 560 features 1024 Stream Processors, 64 Texture Units, and 16 ROPs. The base clock is around 1175 MHz and the boost clock goes up to 1275 MHz, while factory-overclocked variants (like the ASUS ROG Strix OC) even reach 1326 MHz.

Support for DirectX 12 Ultimate, OpenGL 4.5, OpenCL 2.0, and the Vulkan API makes this card well-compatible with modern gaming and rendering technologies. Features like AMD FreeSync, Radeon Chill, ReLive, and Eyefinity Technology are also included. This card is also CrossFire and VR Ready, meaning it can be used by combining two cards to boost performance or for a basic VR experience.

Memory and memory bandwidth

This card features 4GB of GDDR5 video memory, running at effective speeds of 6800-7000 MHz over a 128-bit memory interface. This provides memory bandwidth of up to 112 GB/s, which is significantly better than the RX 550 (96 GB/s). This allows this card to deliver more stable frame rates even in texture-heavy games.

Display Output and Connectivity

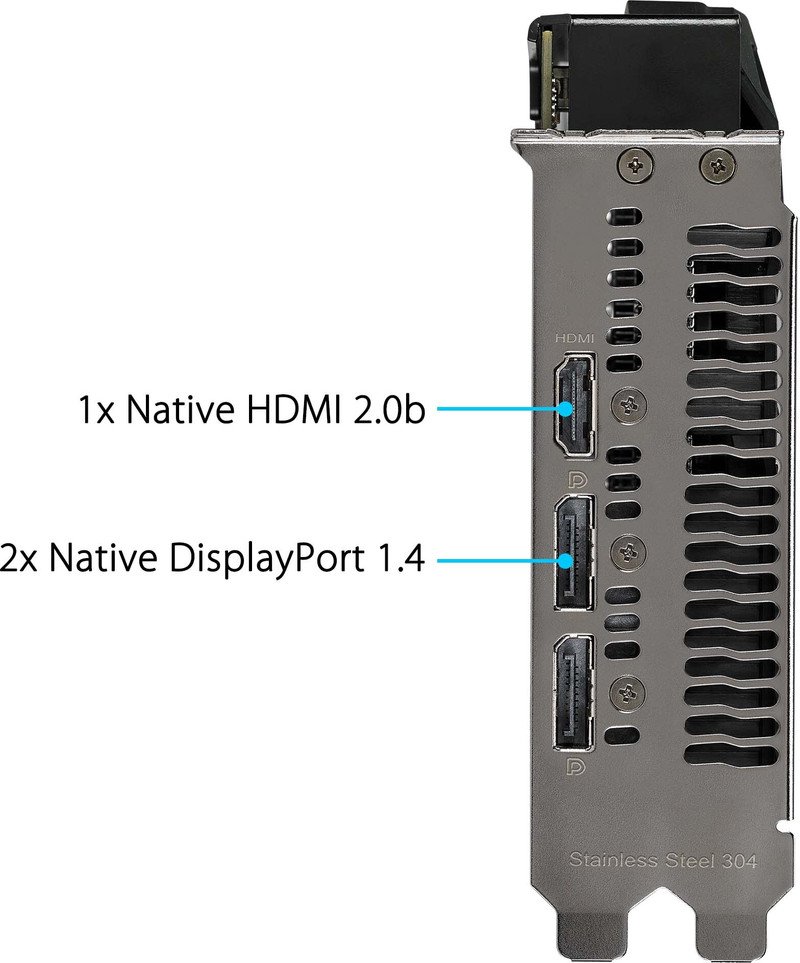

The RX 560 features HDMI 2.0 (with 4K@60Hz support), DisplayPort 1.4/1.4a (up to 8K@60Hz on some models), and DVI-D outputs. Some models also offer a combination of one HDMI and two DisplayPorts, allowing up to three displays to be connected simultaneously. The card supports digital resolution output up to 7680x4320. The PCI Express 3.0 interface makes the card easily compatible with any modern motherboard, although some low-profile/compact variants use PCIe x8 lanes.

Cooling and Build

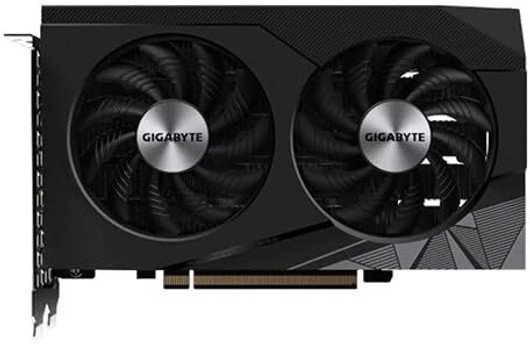

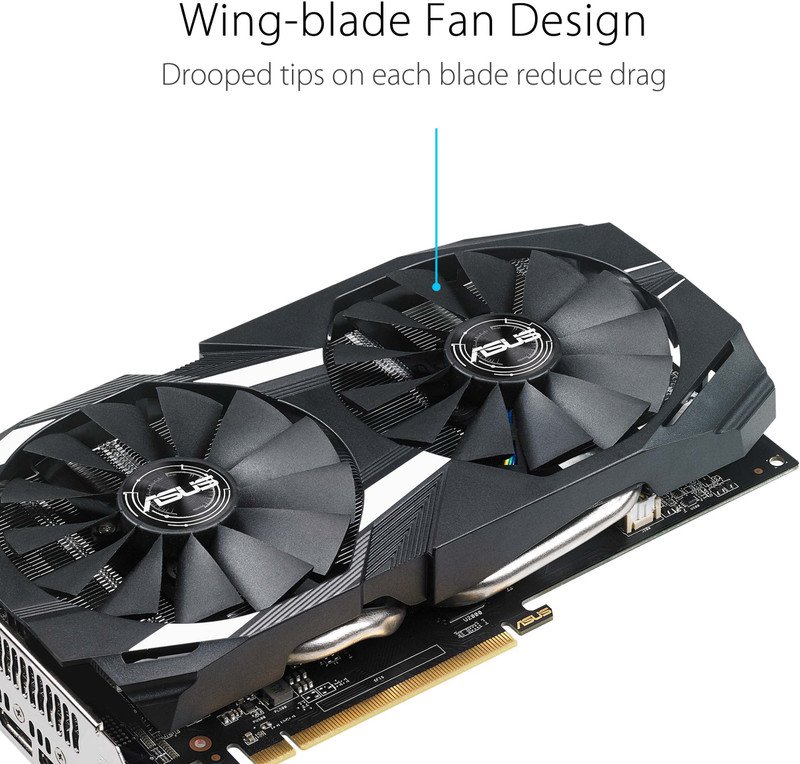

Card size and cooling design vary significantly depending on the model. Standard variants feature dual-fan designs (e.g., Sapphire Pulse, Gigabyte WINDFORCE 2X), while compact variants like the MSI AERO ITX come in at just 155mm in length, perfect for SFF builds. Some models also feature ASRock's 0dB silent cooling technology, which turns off the fan completely under low load.

Things to keep in mind during installation

Seat the card correctly in its PCIe slot. Most variants don't require an additional power connector, but some higher-clocked models may include a 6-pin or 8-pin power connector, so be sure to check the connection for your variant. The recommended PSU is 400W. Download the Adrenalin driver from AMD's official website.

Who is this graphics card for?

The RX 560 4GB is an excellent choice for users seeking a 1080p esports and medium-setting AAA gaming experience on a budget. This card can also be used for multi-display workstations, content creation, and light VR testing. It's a reliable and affordable choice for upgrading older systems.

RX 560 4GB Specifications Table

conclusion

Overall, the AMD Radeon RX 560 4GB is a significant step-up from the RX 550 series, boasting more Stream Processors, improved memory bandwidth, and features like CrossFire and VR support. If you're looking for a card on a budget that offers smooth performance in 1080p esports gaming and some future flexibility, this card is definitely worth considering.

RX 560 4GB Price (New vs Second-Hand)

Note: This card has been discontinued, so "new" units are difficult to find and most purchases are made on the second-hand market. Please verify the card's CU count (14 CU or 16 CU), condition, and benchmark testing before purchasing.
