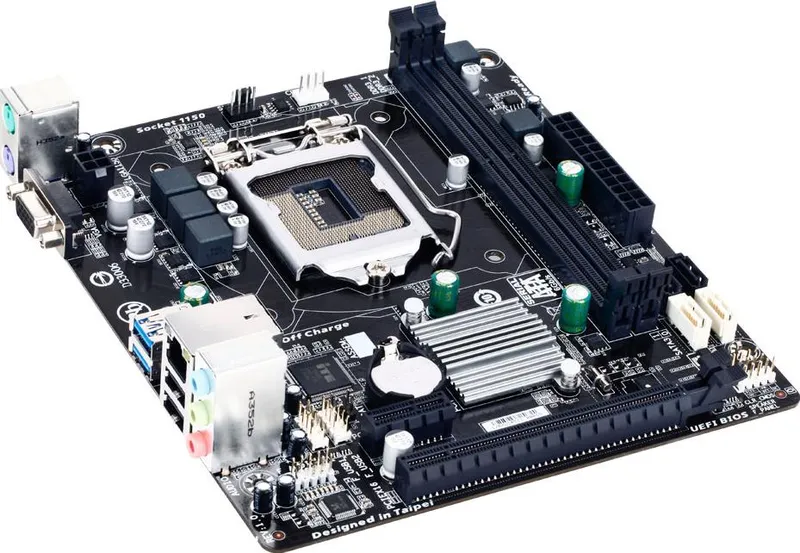

Gigabyte GA H81M S Motherboard

Gigabyte GA H81M S is a Micro ATX form factor motherboard built around Intel's H81 Express chipset. It supports the LGA1150 socket, meaning it works with 4th generation Intel Core i7, i5, i3 processors as well as Pentium and Celeron chips. For anyone who already owns an LGA1150 processor and just wants to swap out the motherboard, this is a practical option worth considering.

Gigabyte has used its Ultra Durable Technology here, which basically means solid capacitors around the CPU VRM design for better stability and a longer lifespan. It also comes with UEFI BIOS, which has become fairly standard on motherboards these days and makes navigating the BIOS a lot more user-friendly than older setups.

Memory and Performance

The board has 2 DDR3 DIMM slots that together support up to 16 GB of system memory. Thanks to dual channel memory architecture, you get better memory bandwidth, and it works with DDR3 1600/1333 MHz modules. There's also support for XMP (Extreme Memory Profile), so if your RAM kit is XMP-compatible, you can run it at its rated speed. One thing worth keeping in mind - if you're running a 32-bit version of Windows and install more than 4 GB of RAM, the system won't display the full amount. That's an OS limitation, not a fault of the motherboard.

Graphics and Display Output

Since this is a basic motherboard, it does have a slot for a dedicated graphics card, but it also runs on integrated Intel HD Graphics out of the box. On the rear panel, you get a single D-Sub (VGA) port that supports resolutions up to 1920x1200. For people who mainly use their PC for office work, browsing, or basic video playback and don't want to spend extra on a graphics card, this onboard graphics option gets the job done.

Expansion Slots and Storage

The Gigabyte GA H81M S offers 1 PCI Express x16 slot running at full x16 speed, so if you decide to add a graphics card down the line, it'll slot right in without any issues. There's also 1 PCI Express x1 slot for smaller expansion cards.

On the storage side, the board provides 2 SATA 6Gb/s ports and 2 SATA 3Gb/s ports, giving you a total of 4 storage connections. Whether you want to run an SSD alongside a hard drive, or even hook up an old-school optical drive, these ports handle it comfortably.

USB and Connectivity

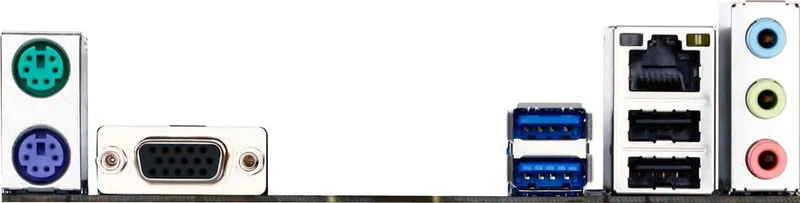

The rear panel features 2 USB 3.0/2.0 ports and 2 USB 2.0/1.1 ports, while internal headers add 4 more USB 2.0 ports. All in all, that's a combination of 6 USB 2.0 ports and 2 USB 3.0 ports, which is decent for a budget board. For networking, there's a Realtek GbE LAN chip supporting speeds up to 10/100/1000 Mbit, meaning gigabit LAN is included.

On the audio side, it comes with a Realtek ALC887 codec supporting high definition audio with 2/4/5.1/7.1-channel output. Pair it with an HD front panel audio module and you can even set up a full multi-channel audio system.

Build Quality and Design

Gigabyte has added high ESD protection to the LAN connection, which reduces the risk of damage from sudden power surges or static electricity. The solid capacitors in the CPU VRM design also help with better heat management, letting the board run reliably over long periods. The form factor is Micro ATX at 19.0 cm x 17.0 cm, so it fits comfortably into compact cases too.

Software Features

The motherboard includes Q-Flash support, which makes updating the BIOS a pretty straightforward process. You also get Xpress Install and APP Center, tools that let you manage drivers and utilities from one place. There's an ON/OFF Charge feature too, which lets you fast-charge your phone or tablet from a USB port even when the PC is switched off - a small but genuinely useful addition for daily use.

Who Is This Motherboard Actually For?

If you're building a basic office PC, a computer for study purposes, or a budget home PC that doesn't need heavy gaming performance, the Gigabyte GA H81M S is a solid pick. It pairs well with older LGA1150 processors, and if you're just replacing a motherboard, you can reuse your existing RAM and storage drives, which keeps overall costs down.

Conclusion

The Gigabyte GA H81M S obviously doesn't pack the features you'd find on today's latest motherboards, but for the category it's built for, it does its job well. Reliable build quality, the essential connectivity options, and Gigabyte's trusted Ultra Durable Technology make this a board that delivers a stable PC experience even on a tight budget.
