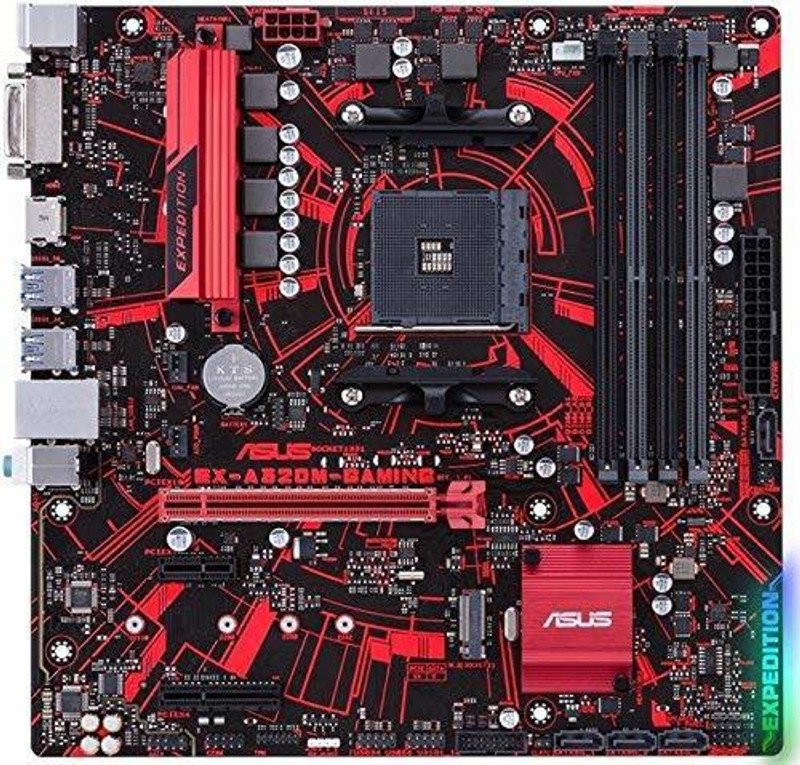

ASUS EX-A320M-GAMING Micro-ATX Motherboard (AM4, DDR4, 64GB) –(Pre Owned)

If you're looking to build an AMD-based budget gaming PC, the ASUS EX-A320M-GAMING is a motherboard that offers a lot of features at a low price. It's part of ASUS's Expedition series, which is known for its non-stop durability and long-term reliability. It features an AM4 socket, which makes it compatible with older Athlon and A-Series APUs, as well as the newer Ryzen 3, Ryzen 5, Ryzen 7, and Ryzen 9 (2nd and 3rd generation) processors.

The board features an anti-moisture coating that protects circuits from moisture and corrosion, and USBGuard technology provides 120% greater overvoltage tolerance. ASUS has also certified it with iCafe Labs, meaning it's tested to withstand diskless systems and heavy gaming loads.

Processor and Power Delivery

This board features a 6-phase ASUS DIGI+ VRM digital power design, which provides a stable and clean power supply to the processor. This ensures system stability even during overclocking and significantly improves CPU life. The AM4 socket allows users to upgrade the processor later, which is a major advantage for budget builds.

Memory Support

This motherboard features four DIMM slots that support DDR4 memory, and can handle speeds ranging from 2133MHz to 3200MHz. A total of up to 64GB of RAM can be installed, which is a good capacity for gaming, multitasking, and heavy software workloads.

Graphics and display output

If you're using an AMD Ryzen APU with Radeon Vega Graphics, the display can be driven using the integrated graphics. The board offers HDMI and DVI-D ports, with resolutions up to 4096x2160 supported over HDMI. And if you want to install a dedicated graphics card, there's also a gold-plated PCIe 3.0 x16 slot, which offers improved signal quality and durability.

Storage and connectivity

For storage, it features 4 x SATA 6Gb/s ports, making it easy to connect hard drives and SSDs. For networking, there's a Gigabit LAN port with a gold-plated finish, ensuring a stable connection and reducing the risk of rust or corrosion over time.

Audio and RGB lighting

For audio quality, the board features dedicated audio PCB layers, which process the left and right channel signals separately, ensuring clear sound. Premium Japanese audio capacitors are also installed, delivering a warm and natural sound, while a de-pop circuit reduces unwanted noise during startup.

For a gaming look, this board comes with Aura Sync RGB headers, meaning you can connect compatible RGB strips or devices to sync the entire system's lighting. It also has an integrated water-pump header that can control both PWM and DC water pumps—meaning this board is ready for those with custom cooling setups.

Expansion Slots

The board features a single PCIe 3.0 x16 slot, plus additional PCIe x1 slots for later installation of sound cards, capture cards, or other expansion devices. This flexibility makes even budget builds long-term upgradeable.

Things to keep in mind during installation

Before installation, ensure your cabinet supports the micro-ATX form factor. Seat the CPU in the correct orientation in the socket, press the RAM into its clips until it clicks, and firmly insert the 8-pin power connector into the CPU power socket. If the system won't boot, first check the RAM seating and power connections, then clear the CMOS if necessary.

Who is this motherboard for?

The ASUS EX-A320M-GAMING is specifically designed for users looking to build an AMD Ryzen-based gaming system on a budget. It's ideal for iCafé, business desktops, and home gaming builds. If you're considering a future processor or graphics card upgrade, this board offers the flexibility to do so.

ASUS EX-A320M-GAMING Specifications Table

ASUS EX-A320M-GAMING Price (New vs Second-Hand)

*Note: This board is for the AM4 socket, which is still in active demand for Ryzen builds, so second-hand prices are slightly better than older H110-like boards. Please verify current prices in your local market or on online platforms before purchasing.
